Home EXCAVATOR HYUNDAI

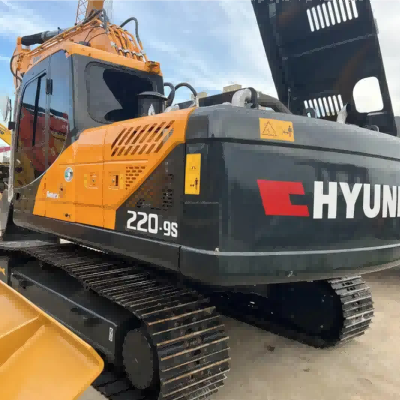

High Perfomance Used Excavator Korean Excavator Hyundai 220-9S 20T Digger

High Perfomance Used Excavator Korean Excavator Hyundai 220-9S 20T Digger

This used Hyundai 220-9S hydraulic excavator has only 800 working hours and is in top operational condition. Built for reliability and power, it’s ideal for earthmoving, trenching, and general construction work. The 220-9S features excellent fuel efficiency, strong digging force, and operator-friendly controls. Whether you're expanding your fleet or replacing older equipment, this low-hour Hyundai 220-9S for sale is a smart investment. A solid choice for contractors seeking second-hand 22-ton excavators with verified quality.



  • Item No :

    220-9S
  • Order(MOQ) :

    1
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    yellow
  • Lead Time :

    15-45days
  • Weight :

    22.5 tons



Hyundai 220-9S Excavator 22T – Good Condition Second Hand

for Sale





Hyundai 220-9s excavator price

The 220-9S offers a balanced combination of powerful performance, advanced hydraulic technology, and operator comfort, making it suitable for a wide range of job sites. With reinforced structures and user-friendly maintenance access, this excavator minimizes downtime and operating costs.

This machine is ideal for buyers looking for affordable used construction equipment, Hyundai 220-9S excavator with warranty, or reliable second-hand heavy machinery.







Key Selling Points

Brand & Model: Hyundai 220-9S

Operating Hours: Only 800 hours, offering extended service life.

Import Status: 100%Korea import with strict factory maintenance.

Fuel-Efficient System: Optimized for better fuel efficiency, reducing operational costs.

Durability: Designed to withstand tough worksite environments with excellent wear resistance.

Full Inspection: Fully inspected to ensure all parts and functions are in optimal working condition.

Eco-Friendly: Meets the latest emission standards for reduced environmental impact.



Here's the updated version of the third point with your new details:



At LianYan Machinery we offer the following key benefits when you purchase the Hyundai 220-9S (2023 model):



1. 6-Month Warranty on Three Major Components

   We provide a 6-month warranty on the three major components of the machine — the engine, hydraulic system, and transmission — ensuring that you are covered for any major issues within this period. This gives you peace of mind that your investment is protected.



2. Video and On-Site Inspections

   To ensure transparency and trust, we offer video inspections and support on-site inspections of the machine. This allows you to inspect the condition of the machine remotely or in person before making any decisions, guaranteeing that you are fully informed.



3. Double Inspection and Comprehensive Maintenance

   We conduct a double inspection process to guarantee the machine’s optimal condition:



   * First Inspection: When the machine is received, it undergoes a detailed inspection. Any issues found are promptly addressed, and worn or damaged parts are replaced.

   * Second Inspection: Before shipment, we carry out another round of thorough inspection and maintenance, ensuring the machine is fully serviced and ready to perform. This includes replacing any worn-out parts and conducting a complete service to ensure that the excavator is in excellent working condition upon arrival.



These measures reflect our dedication to delivering used equipment that meets high standards of reliability, performance, and customer satisfaction.







Applications & Industries



The Hyundai 220-9S is perfect for:

Construction Projects: Site preparation, trenching, and earthmoving.



Mining Operations: Open-pit mining and material extraction.



Road Construction: Paving, excavation, and grading.



Port & Harbor Work: Cargo handling, loading, and digging.





Customer Testimonials



"We purchased a Hyundai 220-9S from Lianyan Machinery, and it exceeded expectations. The machine arrived fully serviced, clean, and ready to work. We appreciated the transparent process and double inspection — it gave us real peace of mind."
— Mr. Zhang, Site Supervisor, Indonesia

"From start to finish, Lianyan was professional and helpful. The team sent us full inspection videos and provided documents before shipping. We’ve been using the 220-9S daily on-site, and it runs perfectly."
— Juan R., Contractor, Peru

client checking on site



Frequently Asked Questions (FAQs)



Q1: Does this machine have any significant repairs or damage?

A1: No, all major components are in excellent condition and have been well maintained with no significant repairs needed.



Q2: What is the cost of shipping this Hyundai220-9S ?

A2: Shipping costs vary based on the destination. Please contact us for an accurate quote.



Q3: Can I test the machine before purchase?

A3: Yes, we can arrange for a test run. Please reach out to schedule a demo.

Hyundai220-9S hydraulic excavator parameter configuration

Specifications

Operating Weight (kg) 22,570

Bucket Capacity (m³) 1.05

Boom Length (mm) 5680

Arm Length (mm) 2920

Place of Origin: Jiangsu

Tonnage (tons) 22

Bucket Backhoe

Manufacturer: Joint Venture/Imported

Power: Conventional

Bucket Backhoe

Manufacturer: Joint Venture/Imported

Power: Conventional

Performance

Swing Speed (rpm) 12

Travel Speed (km/h) 5.3/3.4 (High/Low)

Gradability (%) 35

Ground Pressure (kPa) 47.06

Bucket Digging Force (kN) 151.6

Arm Digging Force (kN) 106.2

Maximum Drawbar Pull (kN) 191.1

Powertrain

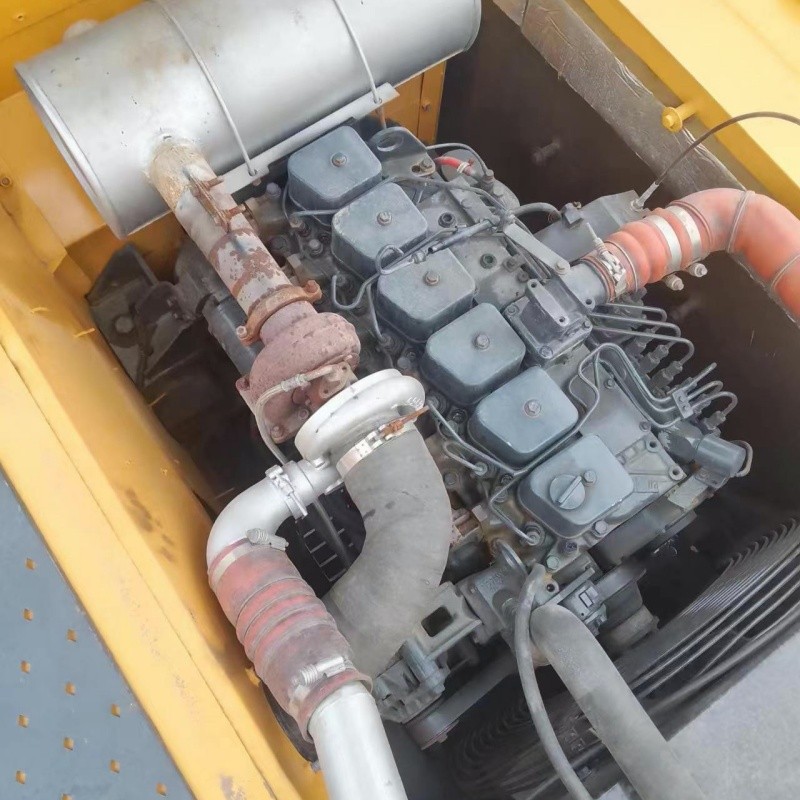

Engine Model: Cummins B5.9-C

Rated power (kW/rpm) 112/1950

Maximum torque (Nm) 613.5

Displacement (L) 5.9

Number of cylinders (6)

Bore x stroke (mm) 107 x 124

Cooling method: Water-cooled

Operating mode: Six-cylinder, four-stroke, turbocharged, direct-injection engine

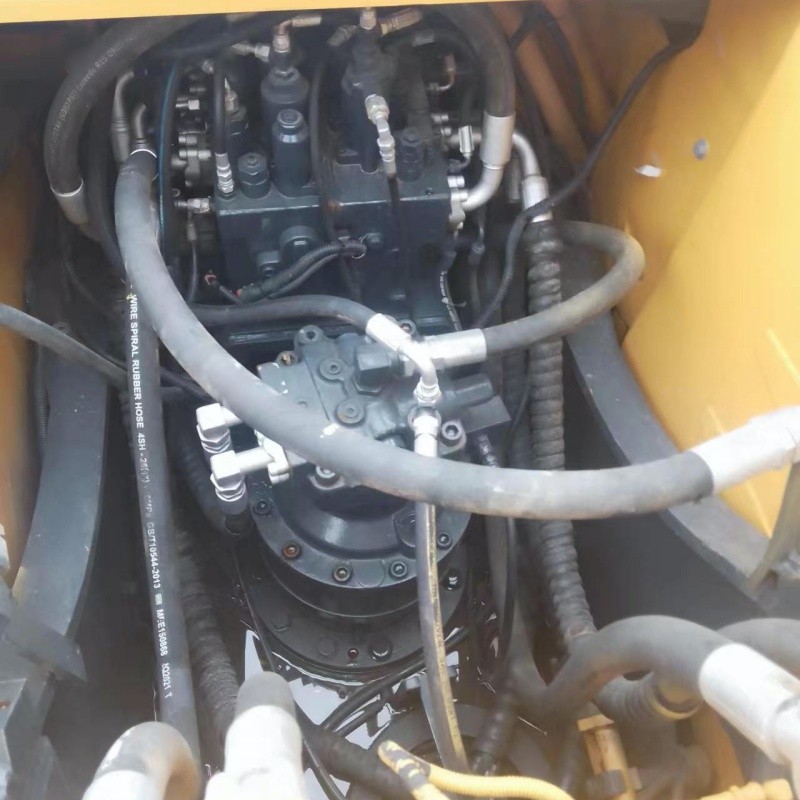

Hydraulic system

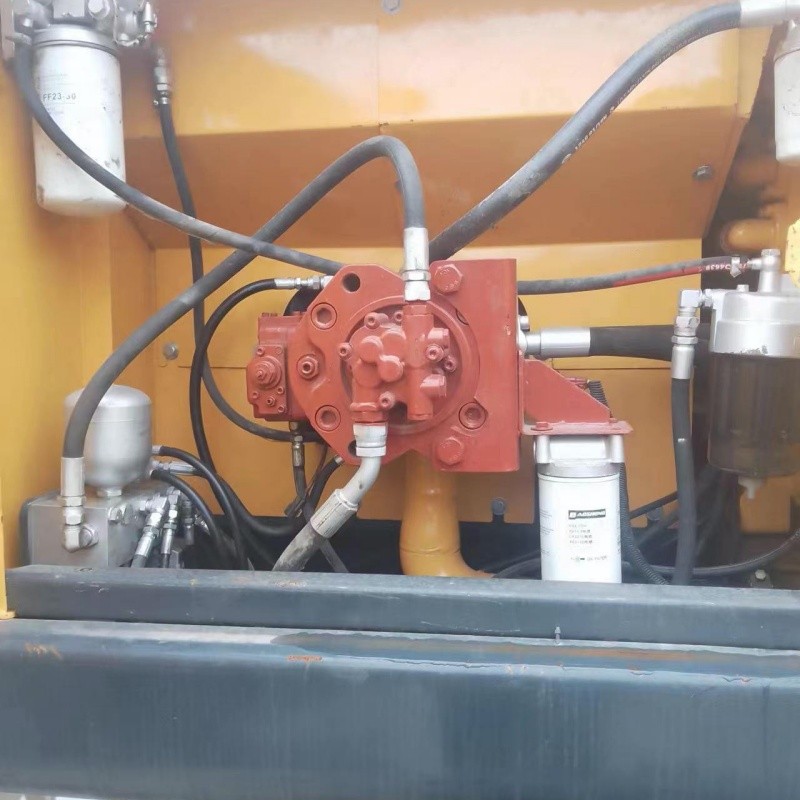

Main pump type: Variable displacement swash plate axial piston pump

Maximum main pump flow rate (L/min) 2 x 222

Travel hydraulic motor type: Variable displacement swash plate axial piston motor

Swing hydraulic motor type: Fixed displacement swash plate axial piston motor

Working hydraulic circuit (MPa) 35

Travel hydraulic circuit (MPa) 35

Swing hydraulic circuit (MPa) )26.5

Pilot oil circuit (MPa)4

Boom cylinders - number × bore × stroke (mm) 120 × 85 × 1290

Arm cylinders - number × bore × stroke (mm) 140 × 100 × 1510

Bucket cylinders - number × bore × stroke (mm) 120 × 85 × 10553

Oil capacity

Fuel tank (L) 400

Hydraulic oil tank (L) 160

Hydraulic system (L) 275

Engine oil change (L) 25

Coolant (L) 35

Main Dimensions

Total Transport Length (mm) 9,550

Total Transport Width (mm) 2,990

Total Transport Height (mm) 3080

Cab Height (mm) 2920

Loading Width (mm) 2740

Counterweight Ground Clearance (mm) 1060

Track Length on Ground (mm) 3650

Total Track Length (mm) 4000

Track Shoe Width (mm) 600

Total Track Width (mm) 2990

Track Gauge (mm) 2390

Minimum Ground Clearance (mm) 480

Minimum Swing Radius of Front Working Attachment (mm) 3740

Rear Swing Radius (mm) )2840

Operating Range

Maximum Digging Radius (mm) 9980

Maximum Digging Radius at Stop (mm) 9820

Maximum Digging Depth (mm) 6730

Maximum Digging Height (mm) 9600

Maximum Dumping Height (mm) 6780

Maximum Vertical Digging Depth (mm) 6280

Maximum Effective Digging Depth (mm) 6560

Bulldozer Blade Width × Height (mm) None

Bulldozer Blade Lift or Push Depth (mm) None
