The factory custom-produces brand-new backhoe loader machines, configuring parameters according to customer requirements to fully meet their needs.
Item No :
backhoeOrder(MOQ) :
1Payment :
FOBProduct Origin :
CHINALead Time :
45DAYS

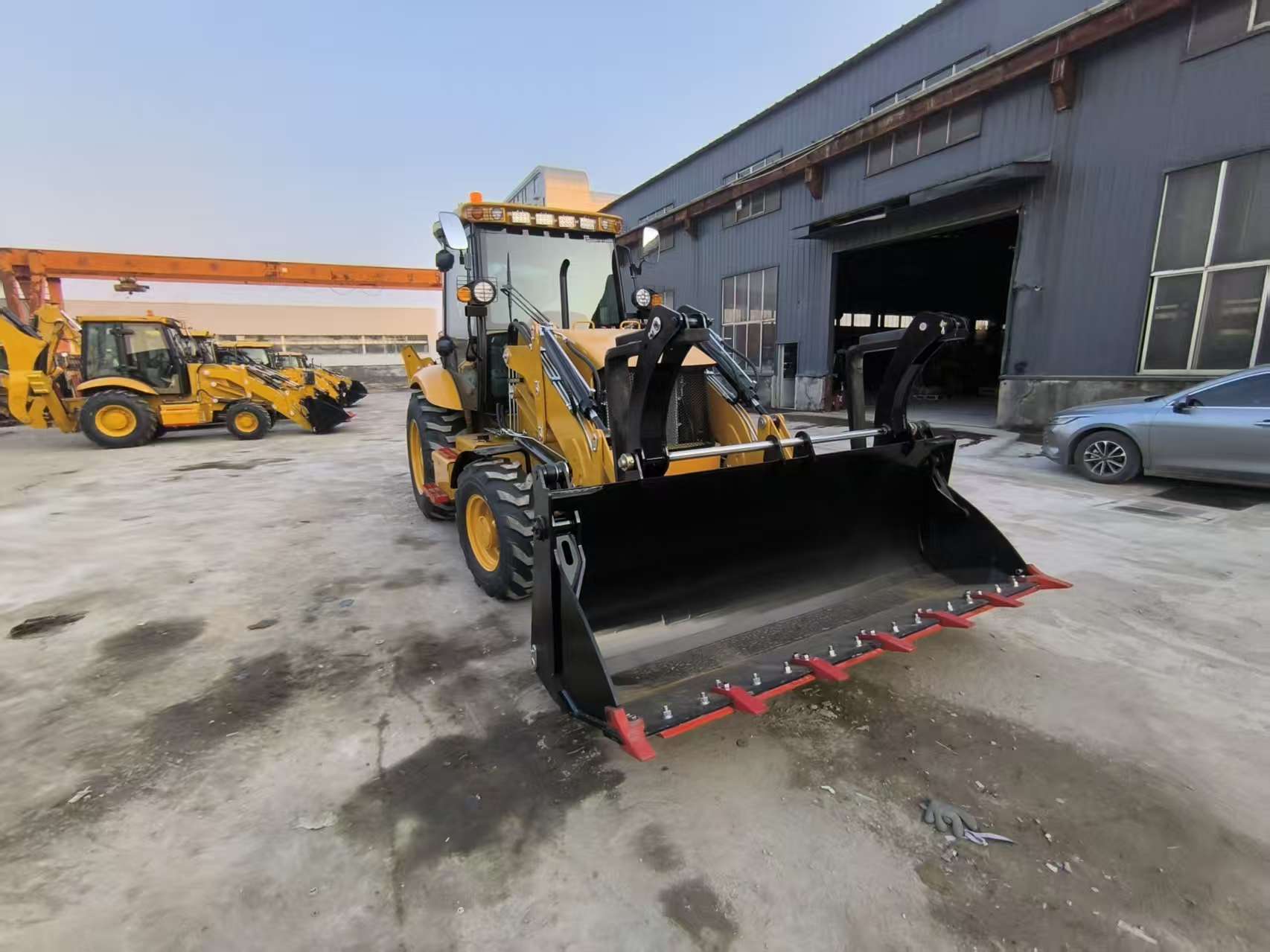

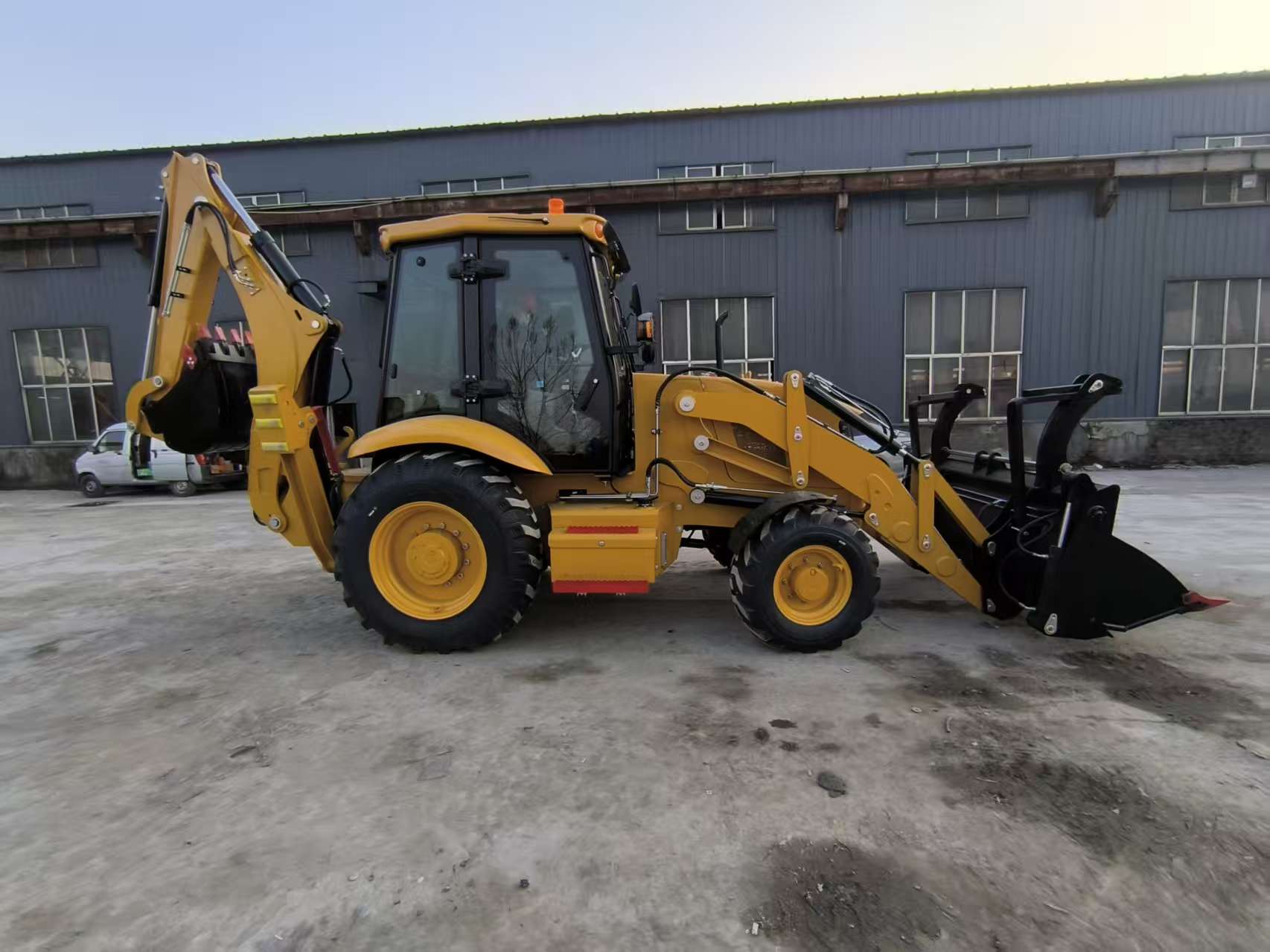

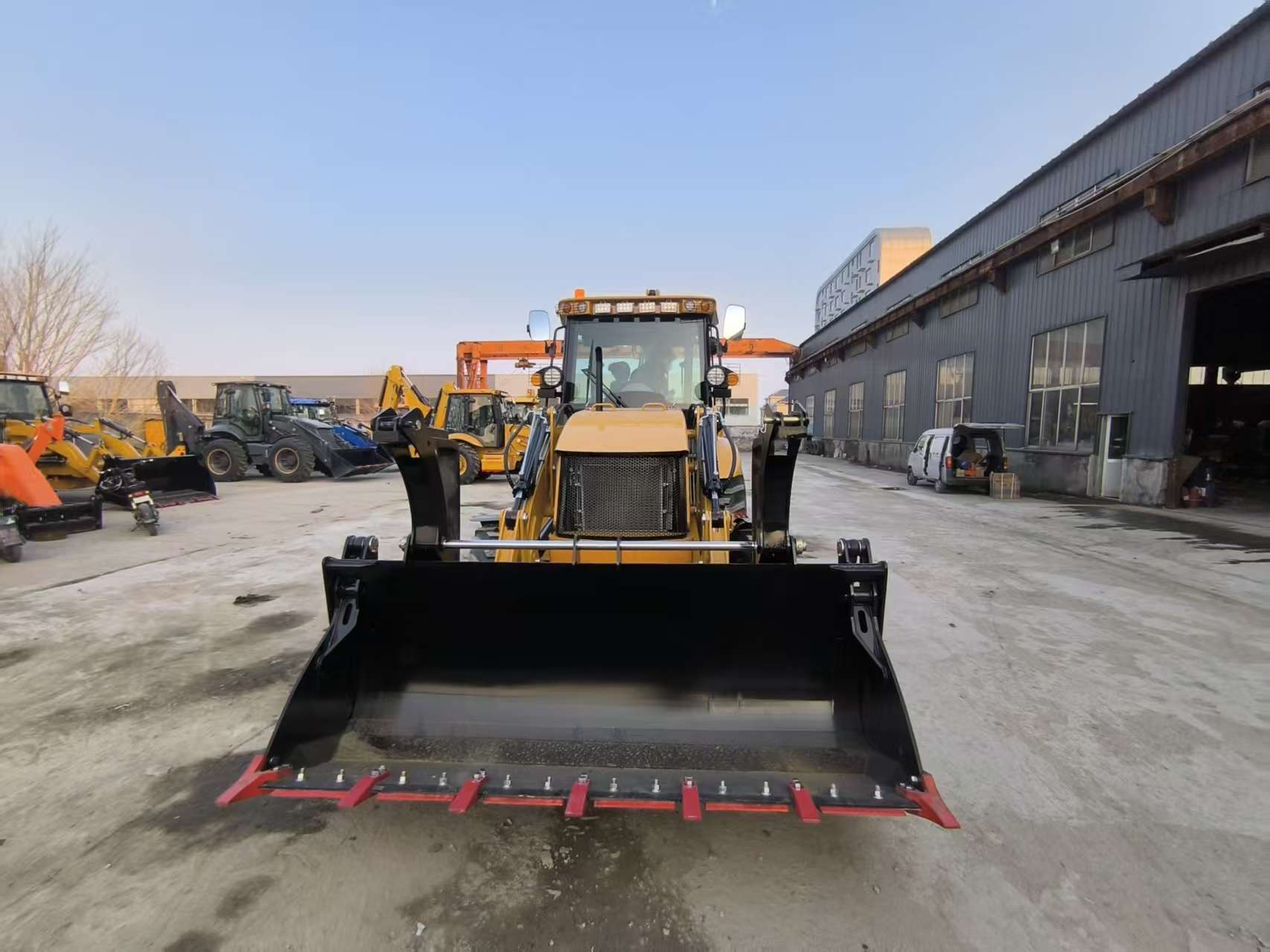

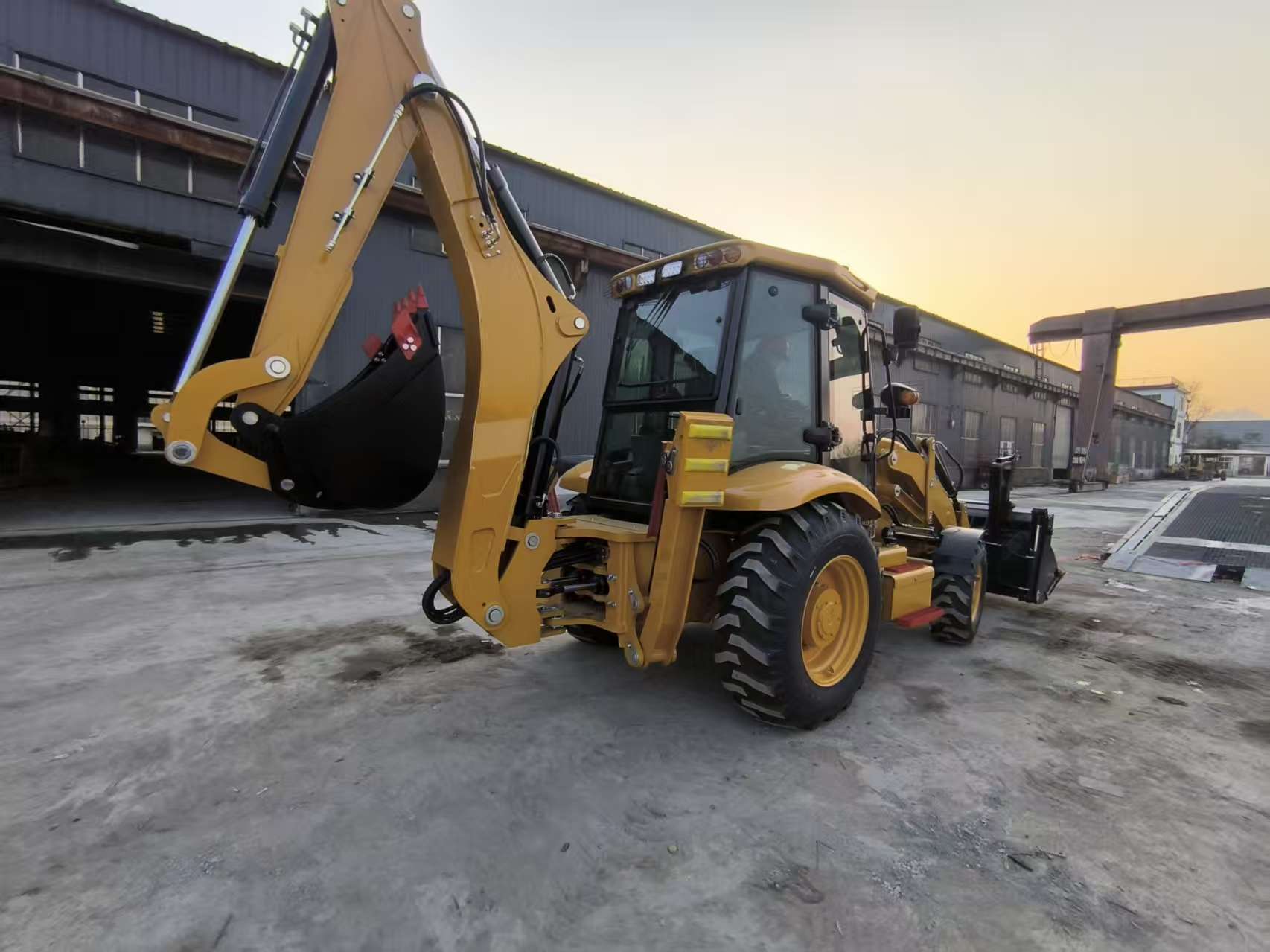

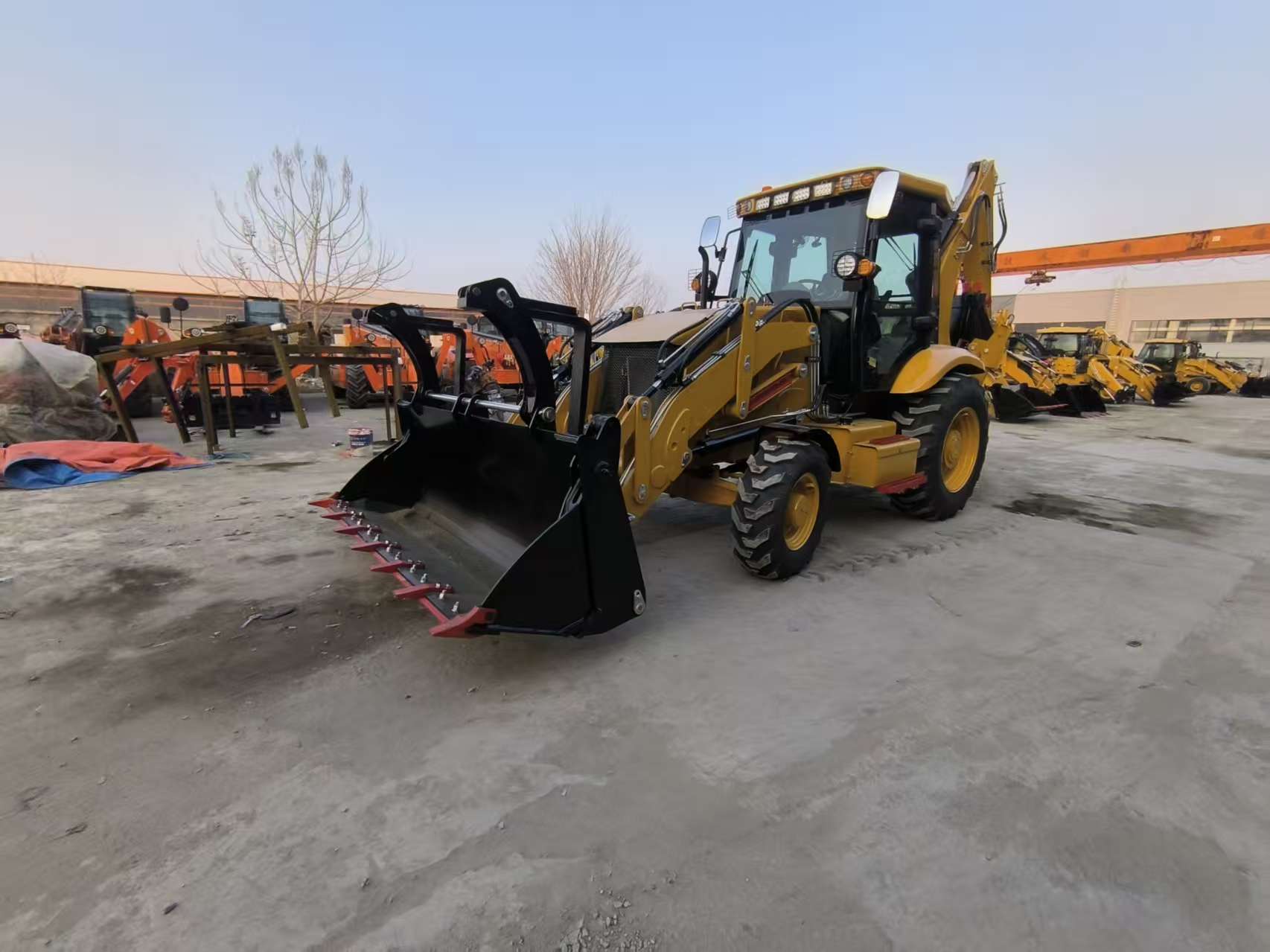

WEICHAI Backhoe Loader
| Weichai Engine |
|
|
Gross rated engine power: minimum 68.5 kW (at 2200 rpm) |
|
|
Number of cylinders: 4 |
|
|
Displacement: 4.4 L |
|
|
Maximum torque: 394 Nm (at 1400 rpm) |
|
|
Hydraulic System: |
|
|
Type: Closed circuit |
|
|
Pump type: Variable displacement axial piston |
|
|
Maximum pump capacity: minimum 132 L/min |
|
|
System pressure: 250 bar |
|
|
Transmission: |
|
|
Manual transmission with 4 speeds (4 forward / 4 reverse) |
|
|
Maximum speed: 40 km/h |
|
|
Brakes: |
|
|
Multi-disc brake system immersed in oil and hydraulically actuated |
|
|
Foot-operated braking system with two brake pedals for independent braking, which can be locked for road use |
|
|
Parking brake independent from the main braking system, mechanically operated by a lever |
|
|
Front Loader Characteristics: |
|
|
GP or MP type bucket depending on availability, with a minimum capacity of 1 m³, direct mounting |
|
|
Maximum working height: 4370 mm |
|
|
Dump height at maximum angle: 2735 mm |
|
|
Maximum pivot pin height: 3449 mm |
|
|
Dump reach at maximum angle: 897 mm |
|
|
Loader disengagement, float position |
|
|
Parallel lift |
|
|
Backhoe Characteristics: |
|
|
Removable backhoe with standard dipper arm |
|
|
4-tooth digging bucket with a width of at least 600 mm, direct mounting |
|
|
Rear frame with side shift |
|
|
Maximum working height: 5721 mm |
|
|
Loading height: 3934 mm |
|
|
Reach from swing pivot at ground level: 5603 mm |
|
|
Maximum digging depth: 4707 mm |
|
|
2 stabilizers |
|
|
Weight: |
|
|
Operating weight must be at least 8400 kg |
|
